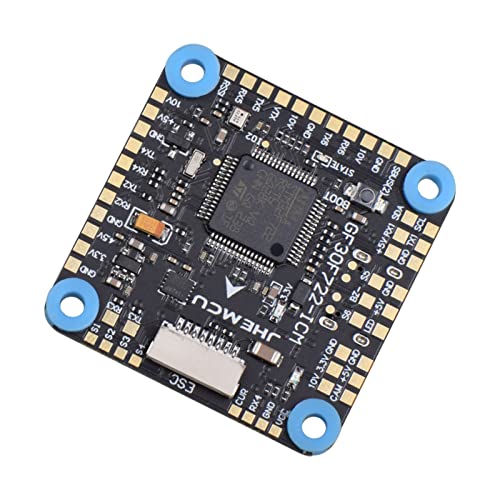

GoolRC GF30F722-ICM F722 F7 HD Baro OSD 5V 10V Dual BEC Flight Controller 3-8S 30.5X30.5mm for Remote Control FPV Freestyle Drone Parts

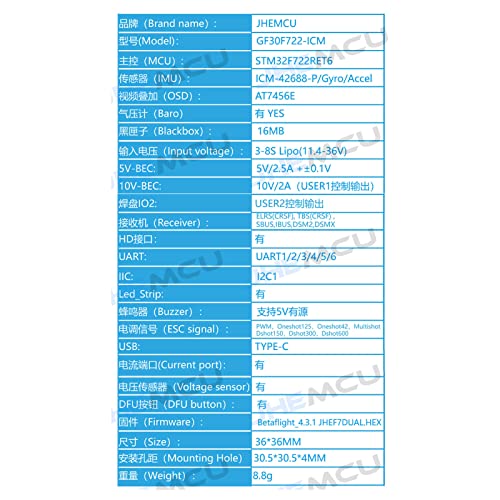

Specifications:
(Model): GF30F722-ICM
(MCU) STM32F722RET6
(IMU) ICM-42688-P/Gyro/Accel
(OSD): AT7456E
(Baro) YES
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A +±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
1IC: 12C1
Led Strip:YES
(Buzzer): 5V
(ESCsignal): PWM，Oneshot125，Oneshot42.Multishot Dshot150，Dshot300，Dshot600
USB: TYPE-C
(Current port): YES
(Voltage sensor) YES
DFU (DFU button): YES
(Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX
(Size): 36*36MM
(Mounting Hole) 30.5*30.5*4MM
(Weight) 8.8g

Package Information:
Package Size: 50*40*20mm
Package Weight: 20g

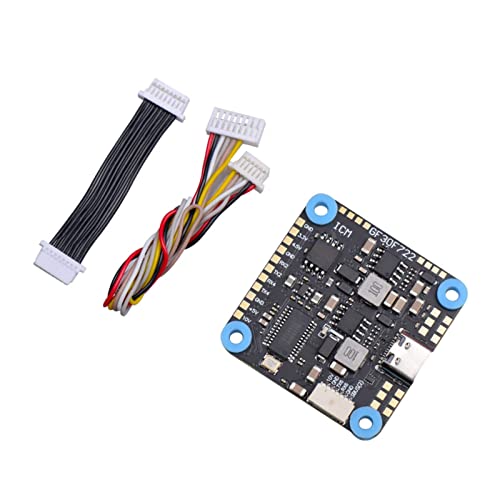

Package List:
1*F722 F7 HD Baro OSD 5V 10V Dual BEC Flight Controller

GF30F722-ICM F722 F7 HD Baro OSD 5V 10V Dual BEC Flight Controller 3-8S 30.5X30.5mm for Remote Control FPV Freestyle Drone Parts
The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger overcurrent capability and good heat dissipation.
MOS adopts imported 30V high current resistance mos, long life and strong load capacity.
Using industrial grade LDO, high temperature resistance.
Using high-quality Japanese Murata capacitors, strong filtering performan.
